Description
Features:

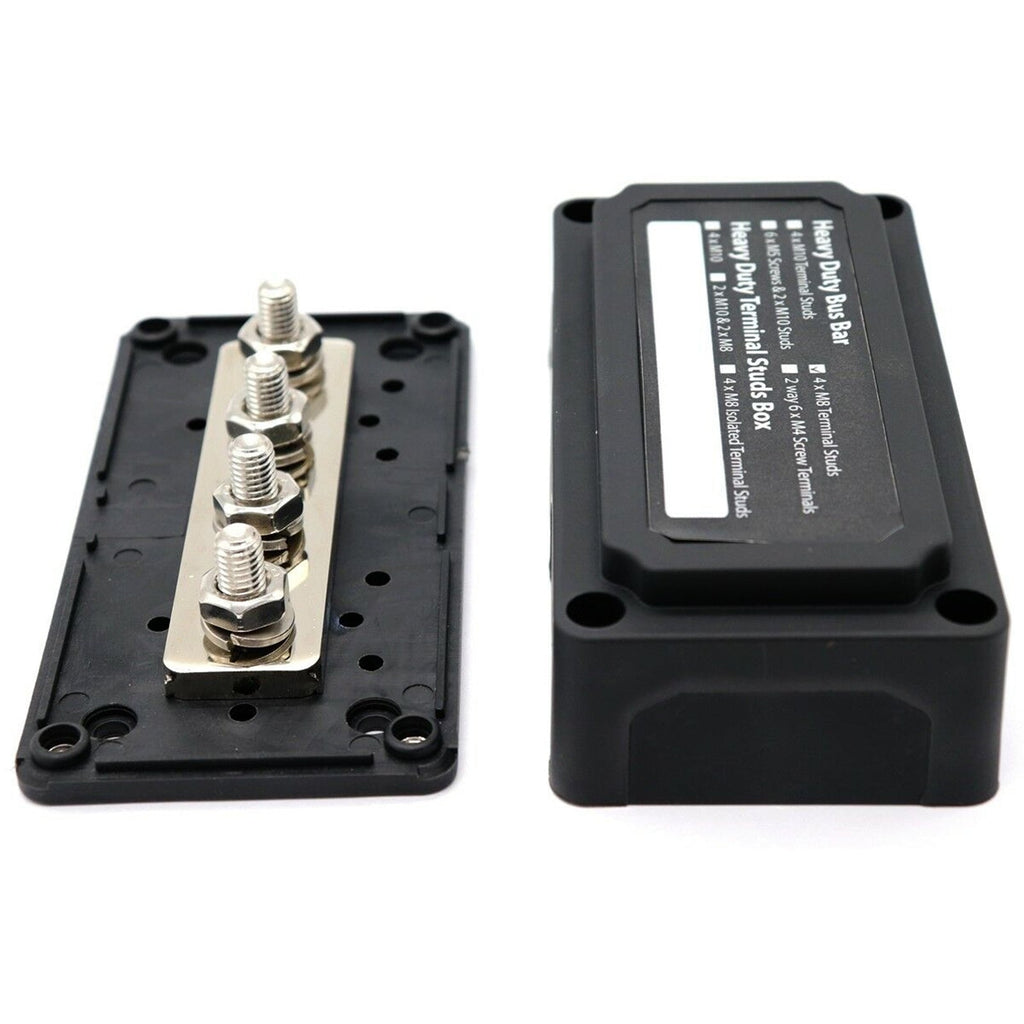

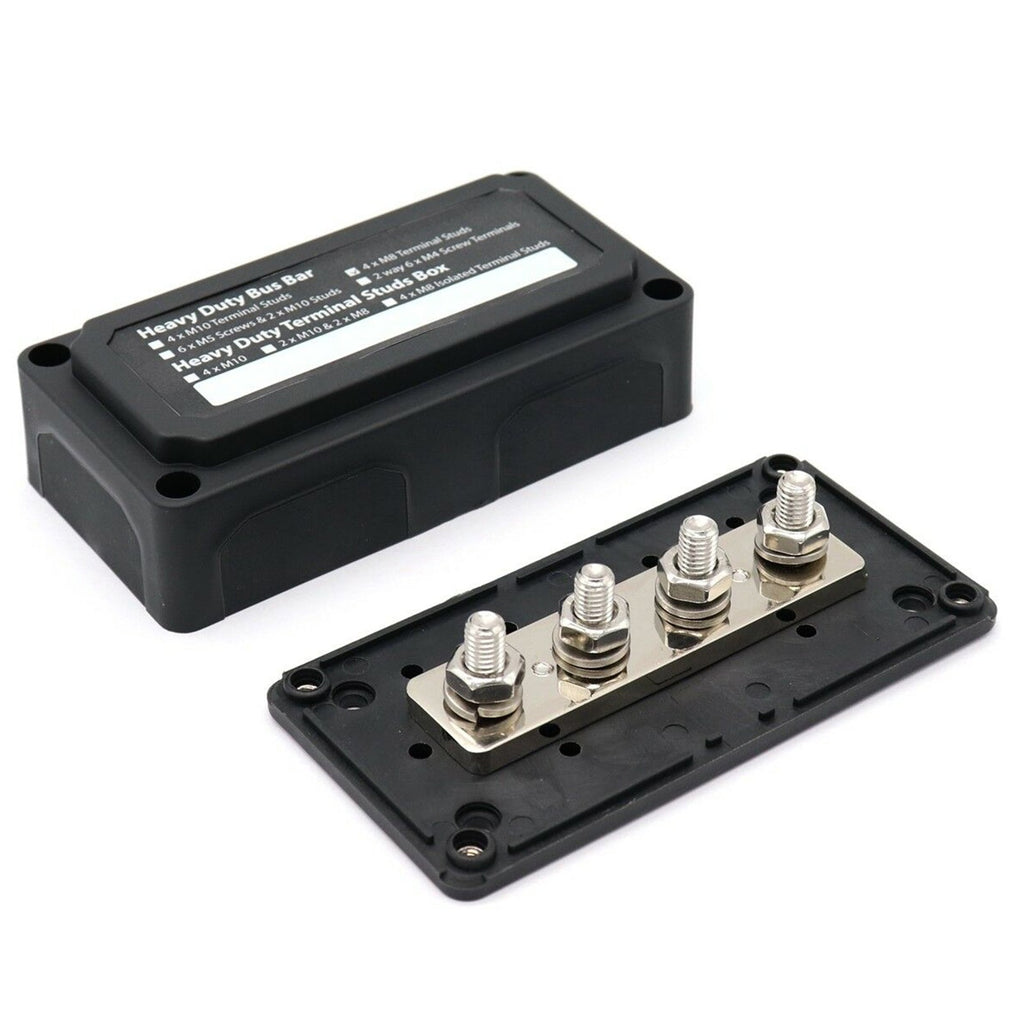

Highest amperage rated bus bar (300A) with M8 terminal studs (also available in M10)
Module box design for easy wiring configurations

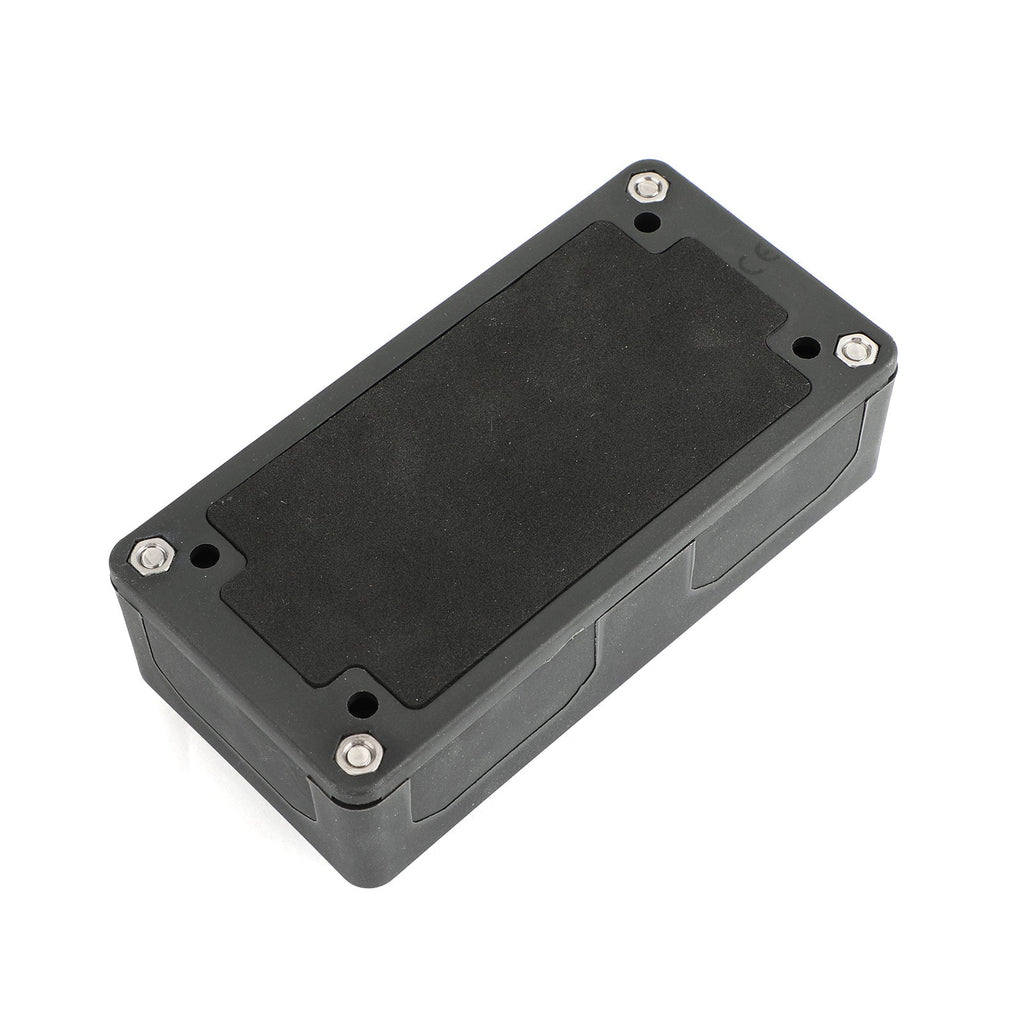

Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability
Removable windows for unobstructed wiring
Blank write-on space on the top allows easy labeling for each branch
Specification:
100% Brand new and high quality.
Product Shape/Color: Same as the picture show
1. Base & Cover Material | Nylon, Glass Fiber reinforced
2. Bus Material | Brass, Nickel plated
3. Max Operating Voltage | DC 48V
4. Max Continuous Amp | 300A
5. Terminal Stud Size | 4x M8 (5/16")

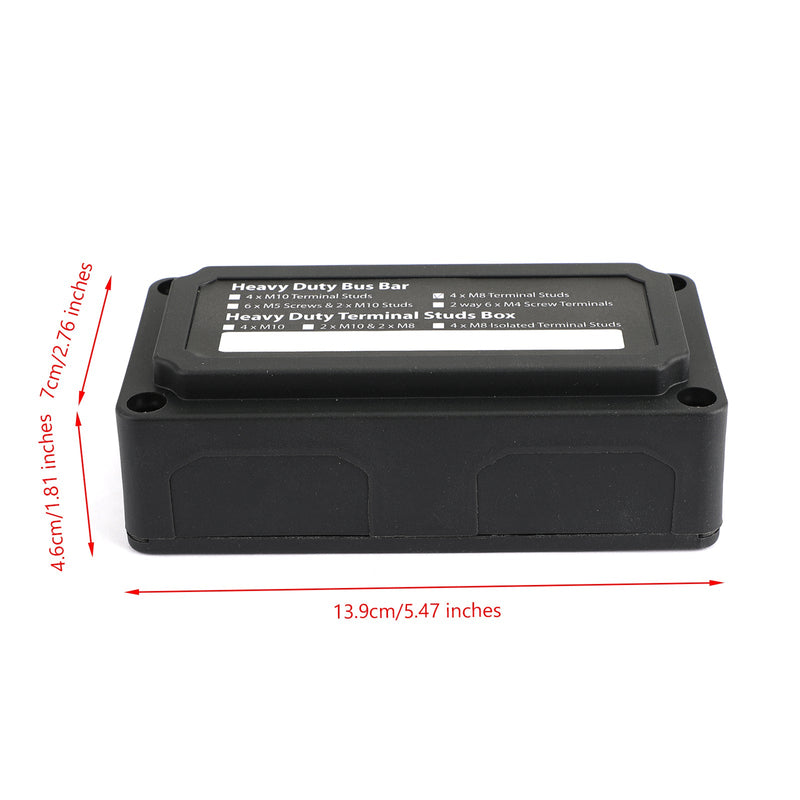

6. Dimensions (L x W x H) | 138 x 69 x 44.5mm
7. LENGTH: 138mm
8. WIDTH: 69mm
9. HEIGHT: 44.5mm
10. Volts: 12V-48V

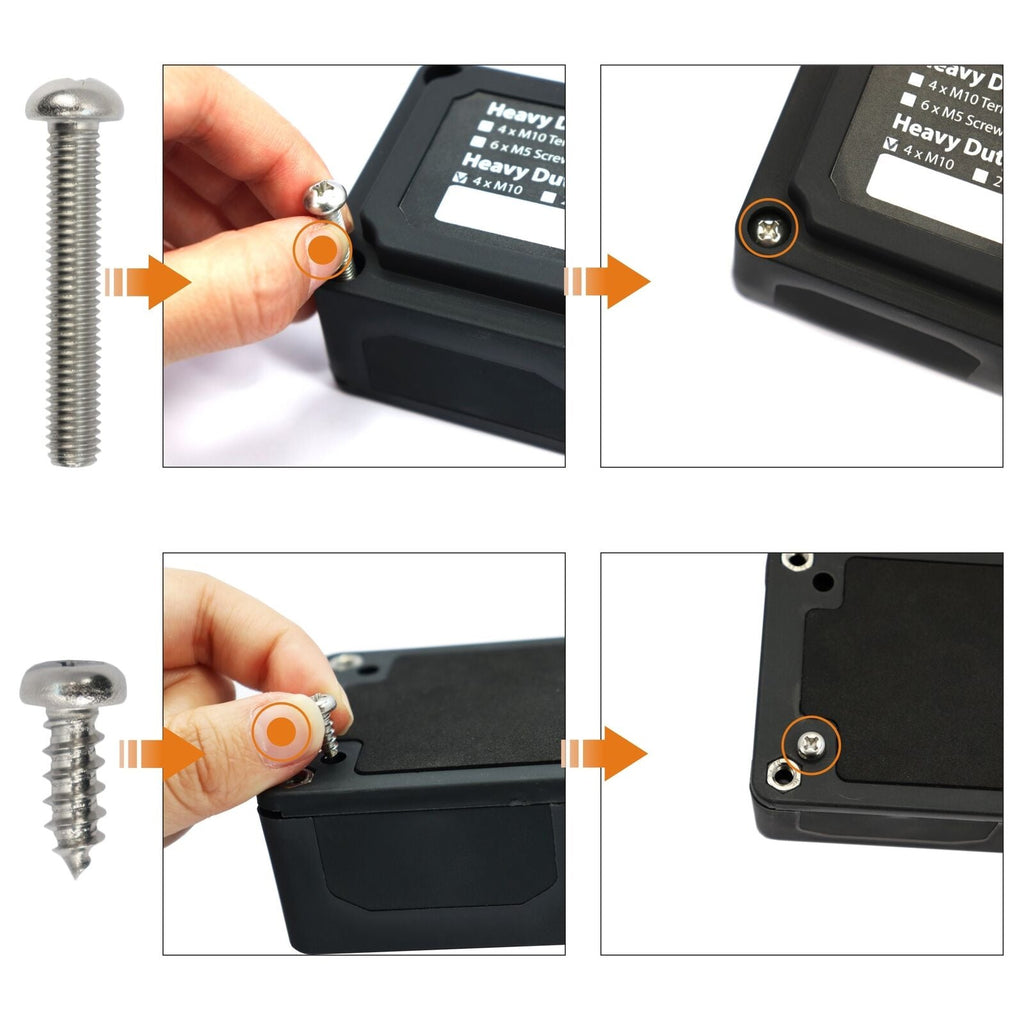

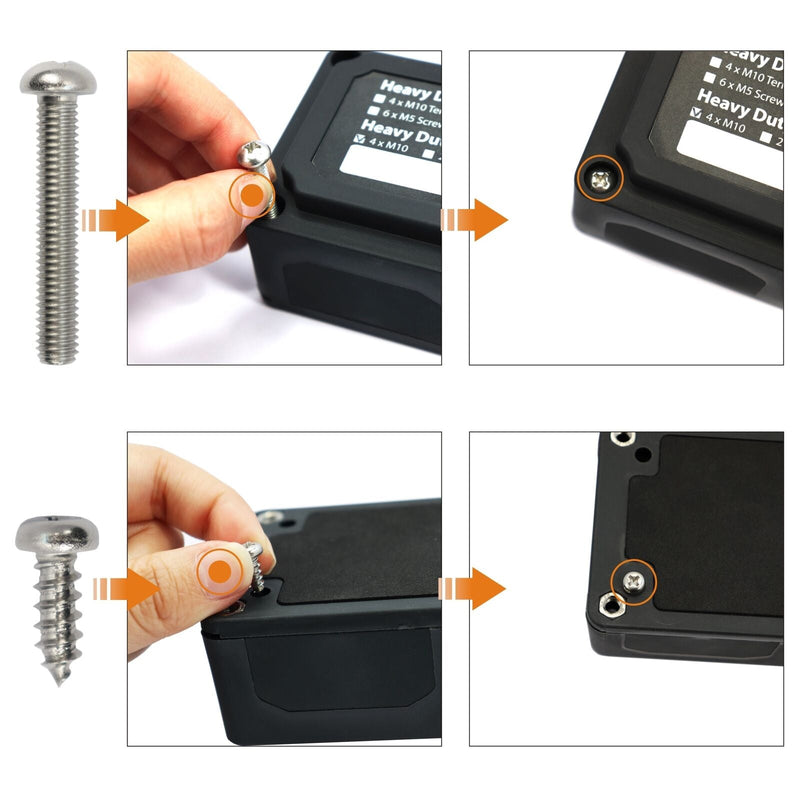

Note: * Mount with 4 gauge screws only.
* Glass fibre reinforced nylon base and enclosure.
* Removable windows for unobstructed wiring.
* Nickel plated brass buss material.
* 30mm x 10mm terminal stud size.
* Rated up to 300 amps.
Package included:

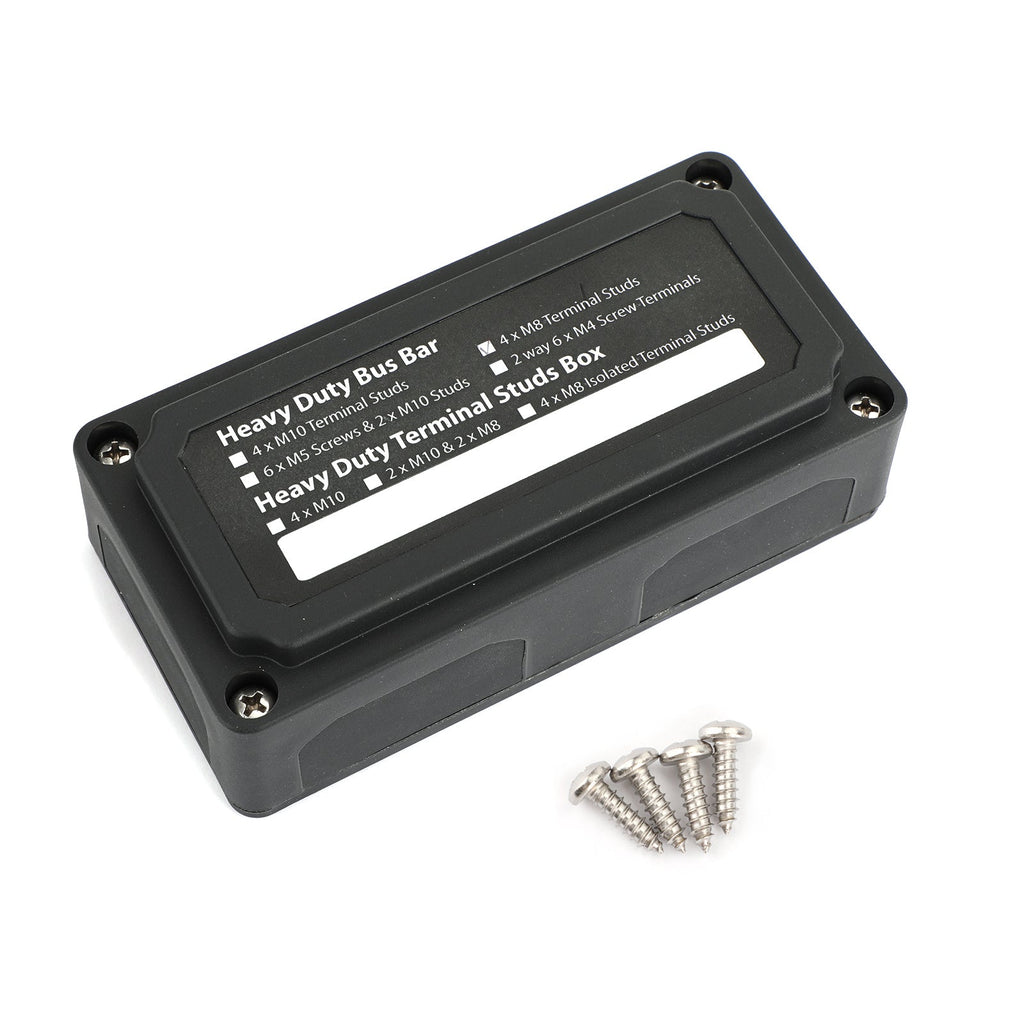

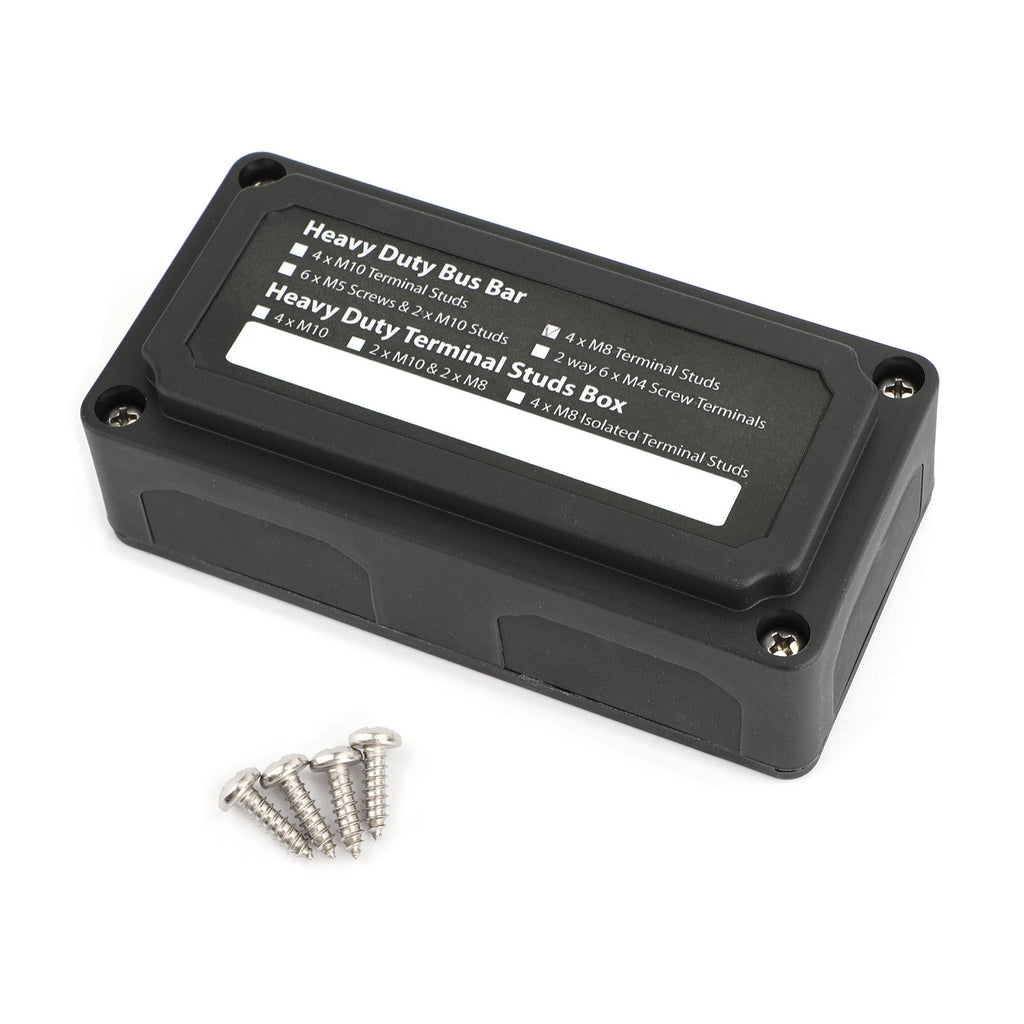

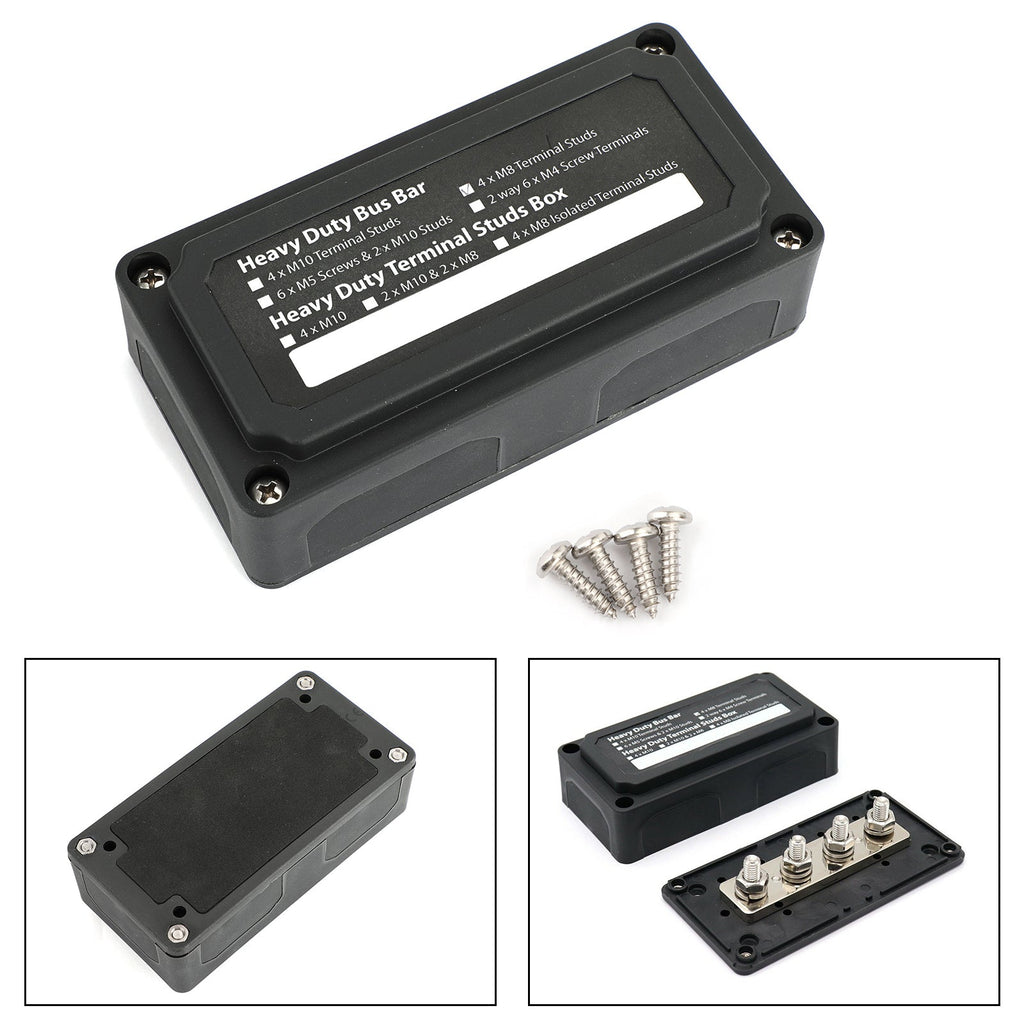

1x Highest amperage rated bus bar box
4*Screws
