Description

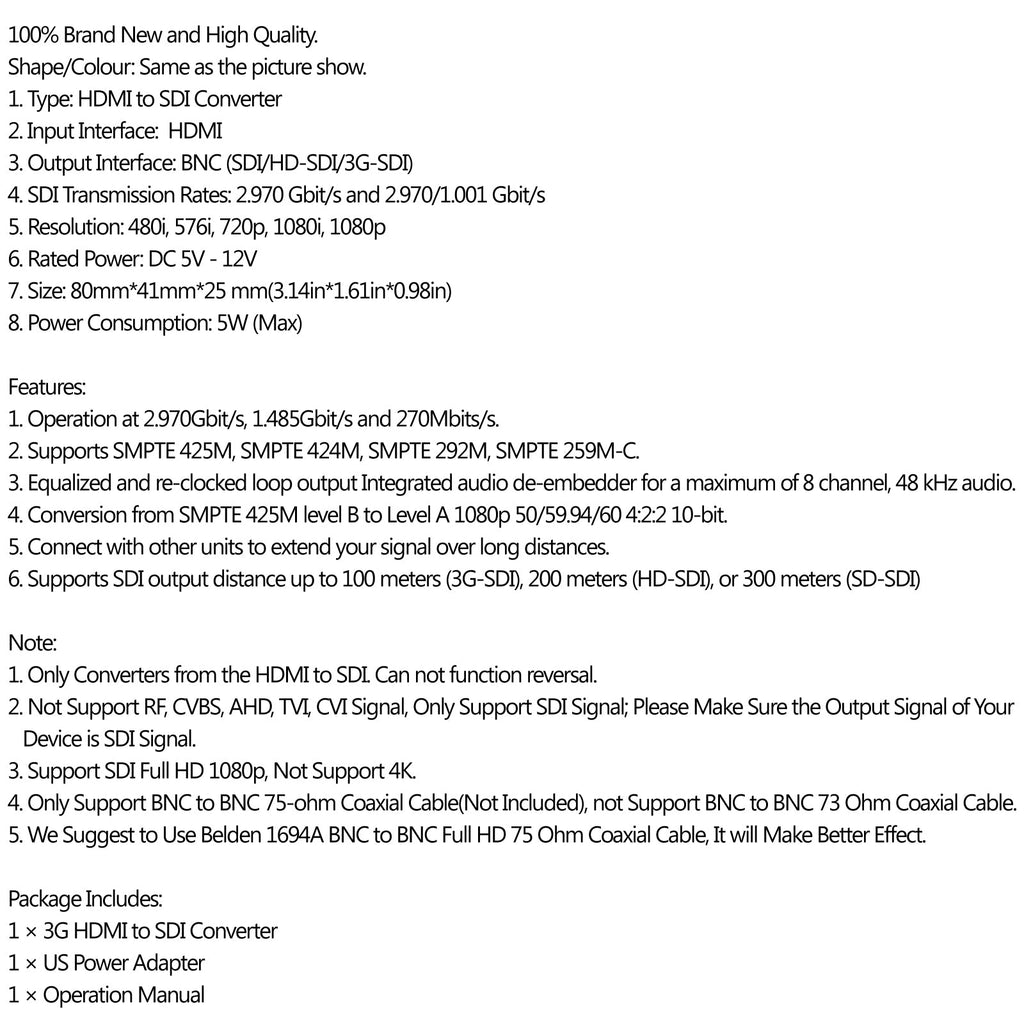

Specifics:

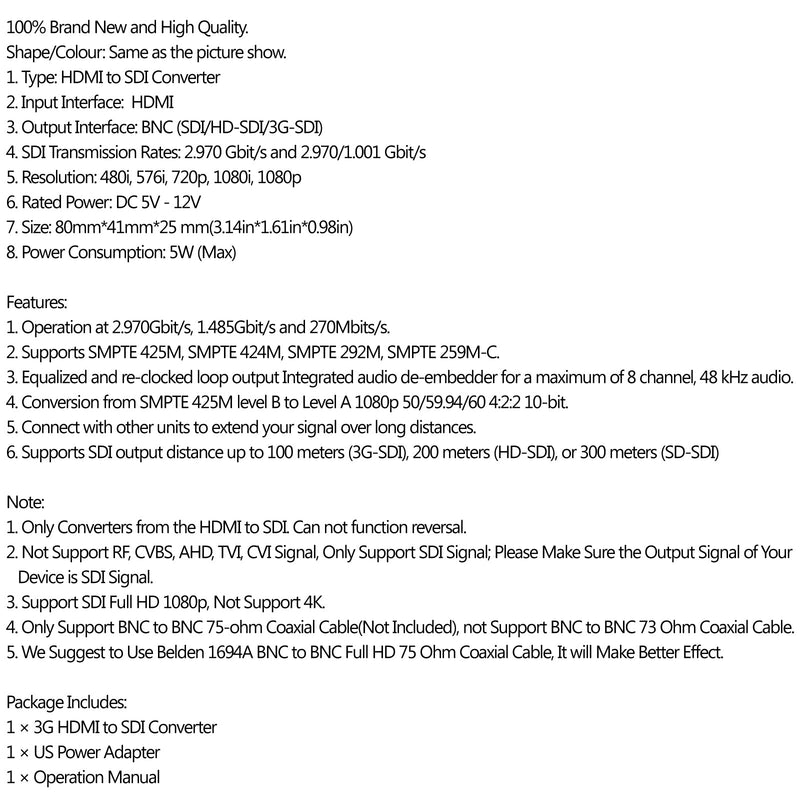

100% Brand New and High Quality.
Shape/Colour: Same as the picture show.

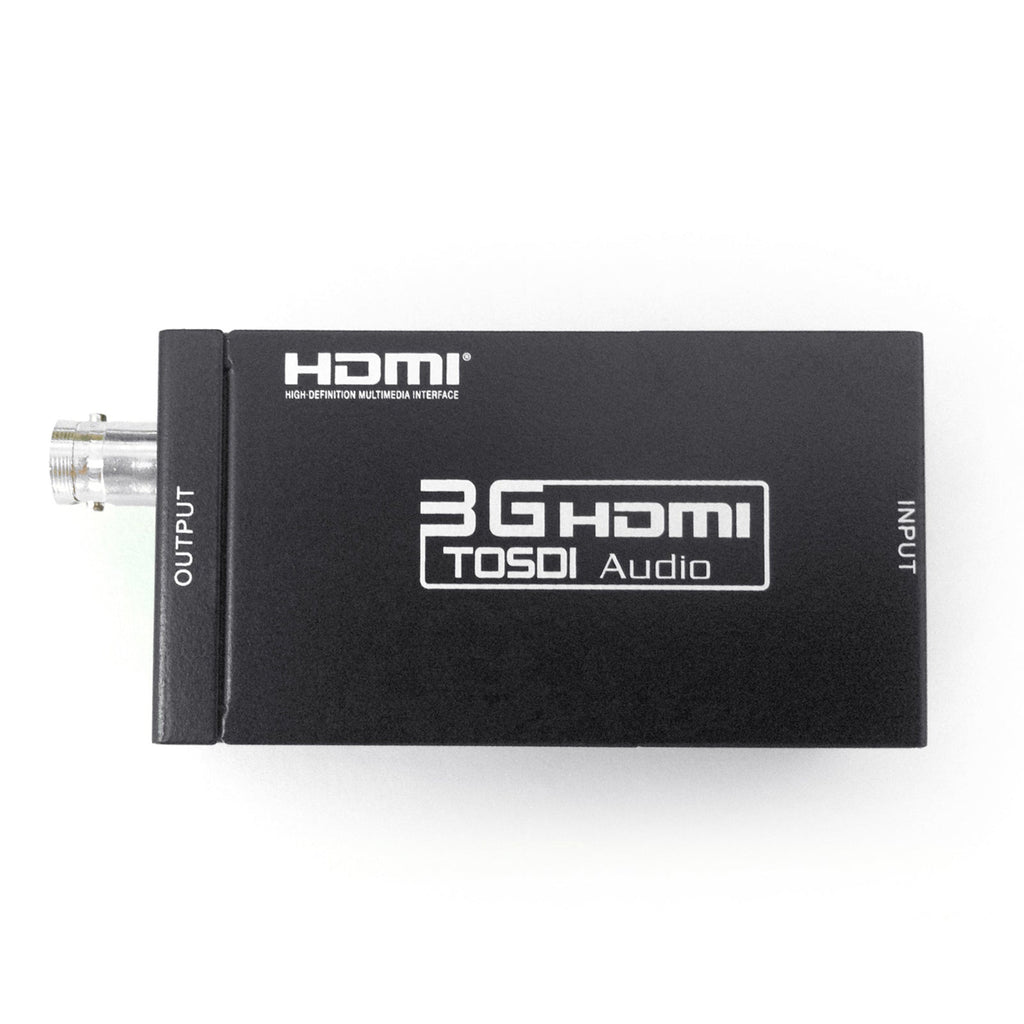

1. Type: HDMI to SDI Converter

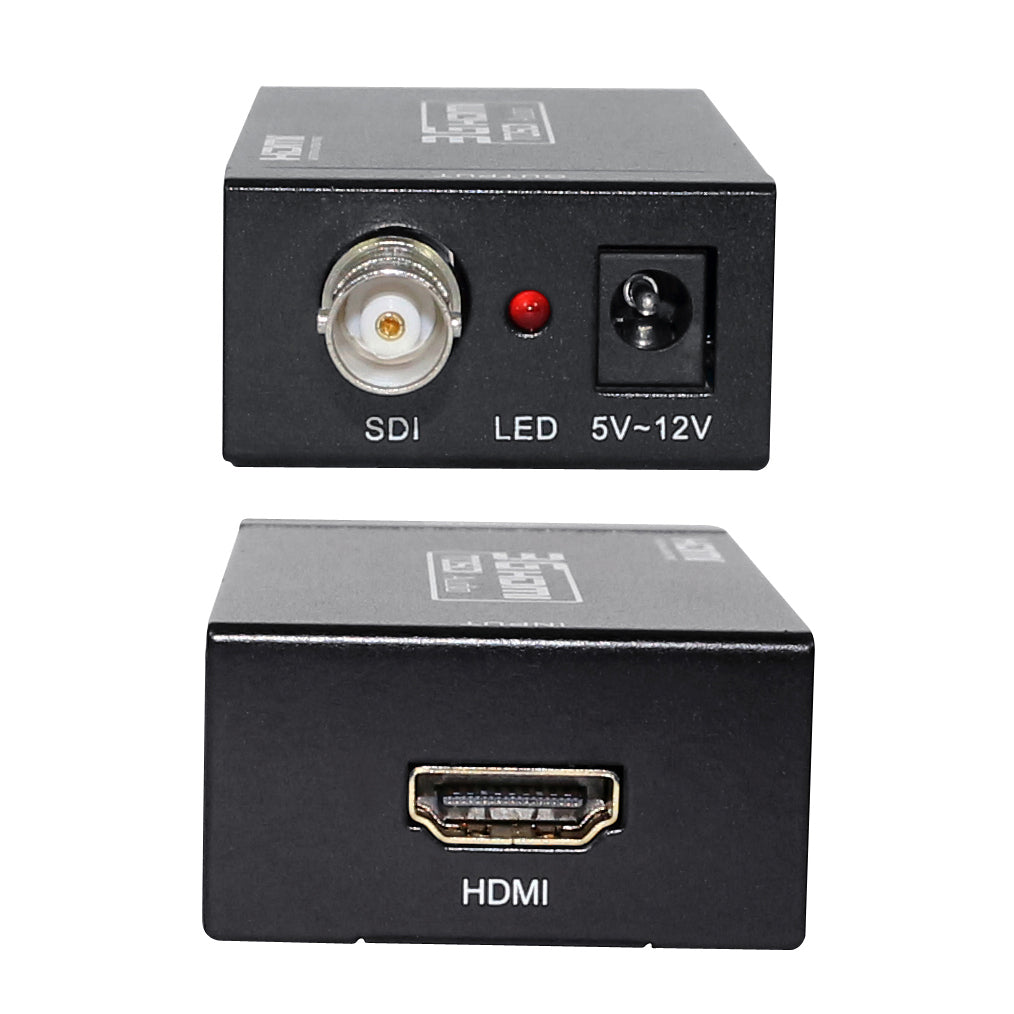

2. Input Interface: HDMI
3. Output Interface: BNC (SDI/HD-SDI/3G-SDI)
4. SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
5. Resolution: 480i, 576i, 720p, 1080i, 1080p
6. Rated Power: DC 5V - 12V

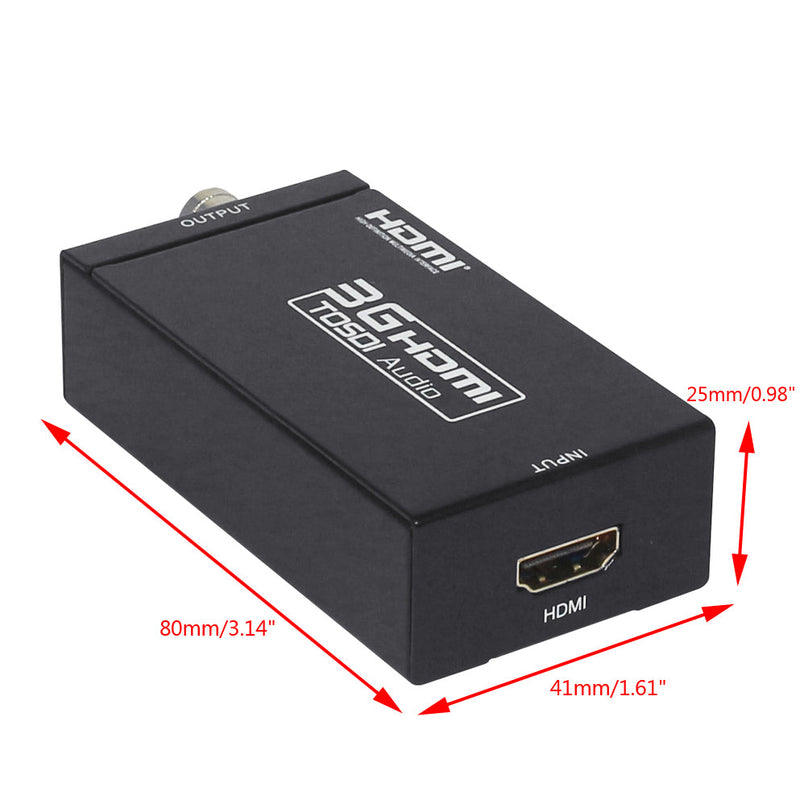

7. Size: 80mm*41mm*25 mm(3.14in*1.61in*0.98in)
8. Power Consumption: 5W (Max)
Features:
1. Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s.
2. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.
3. Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio.
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.

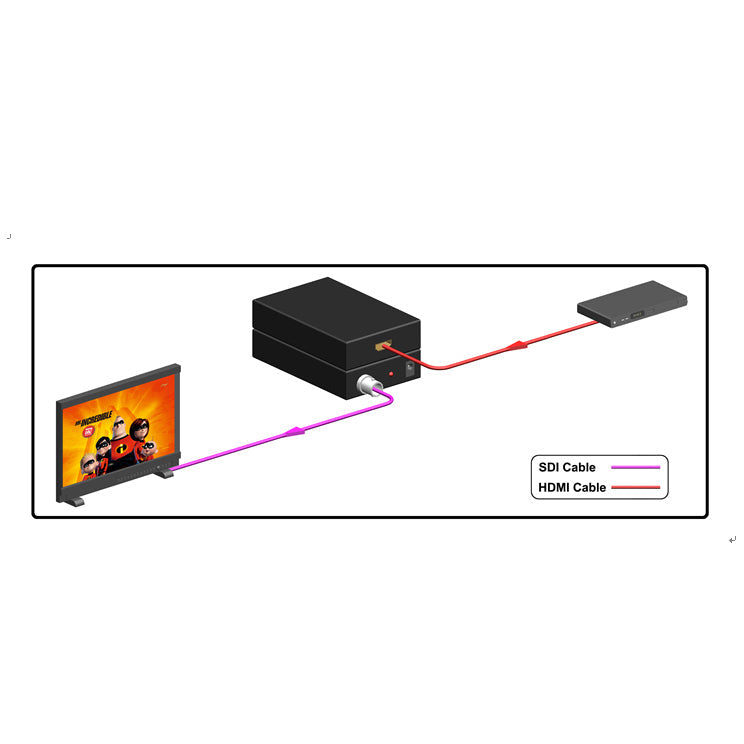

5. Connect with other units to extend your signal over long distances.
6. Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note:
1. Only Converters from the SDI to HDMI Can NOT Function Reversal.
2. Not Support RF, CVBS, AHD, TVI, CVI Signal, Only Support SDI Signal; Please Make Sure the Output Signal of Your Device is SDI Signal.
3. Support SDI Full HD 1080p, Not Support 4K.
4. Only Support BNC to BNC 75-ohm Coaxial Cable(Not Included), not Support BNC to BNC 73 Ohm Coaxial Cable.
5. We Suggest to Use Belden 1694A BNC to BNC Full HD 75 Ohm Coaxial Cable, It will Make Better Effect.

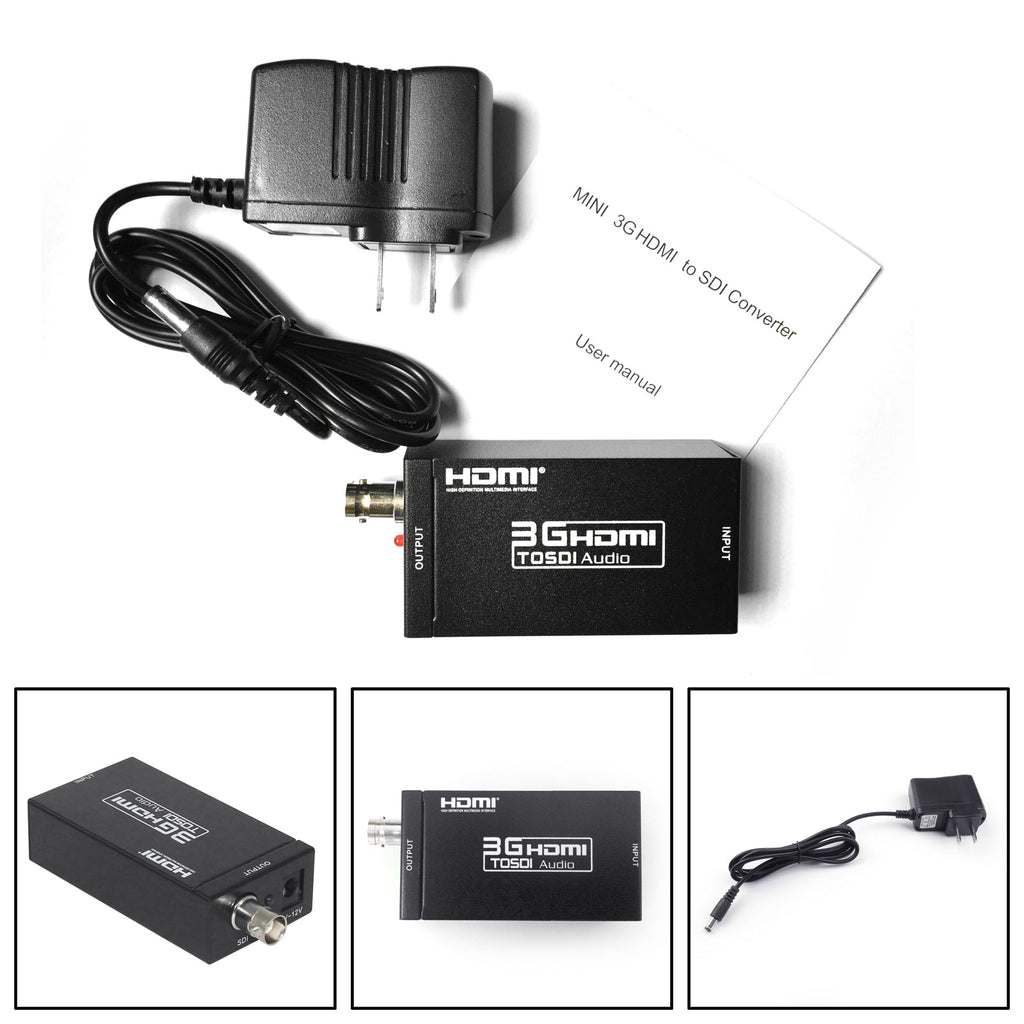

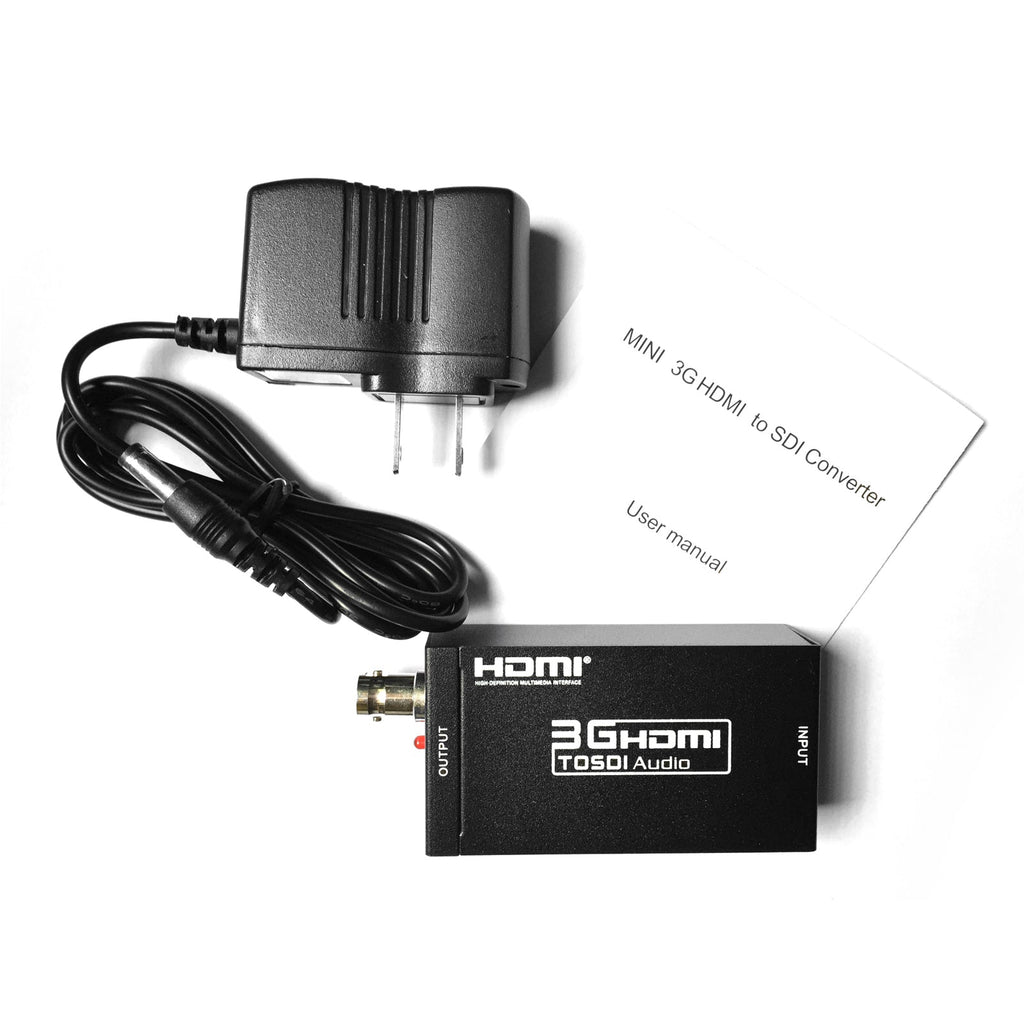

Package Includes:
1 × 3G HDMI to SDI Converter

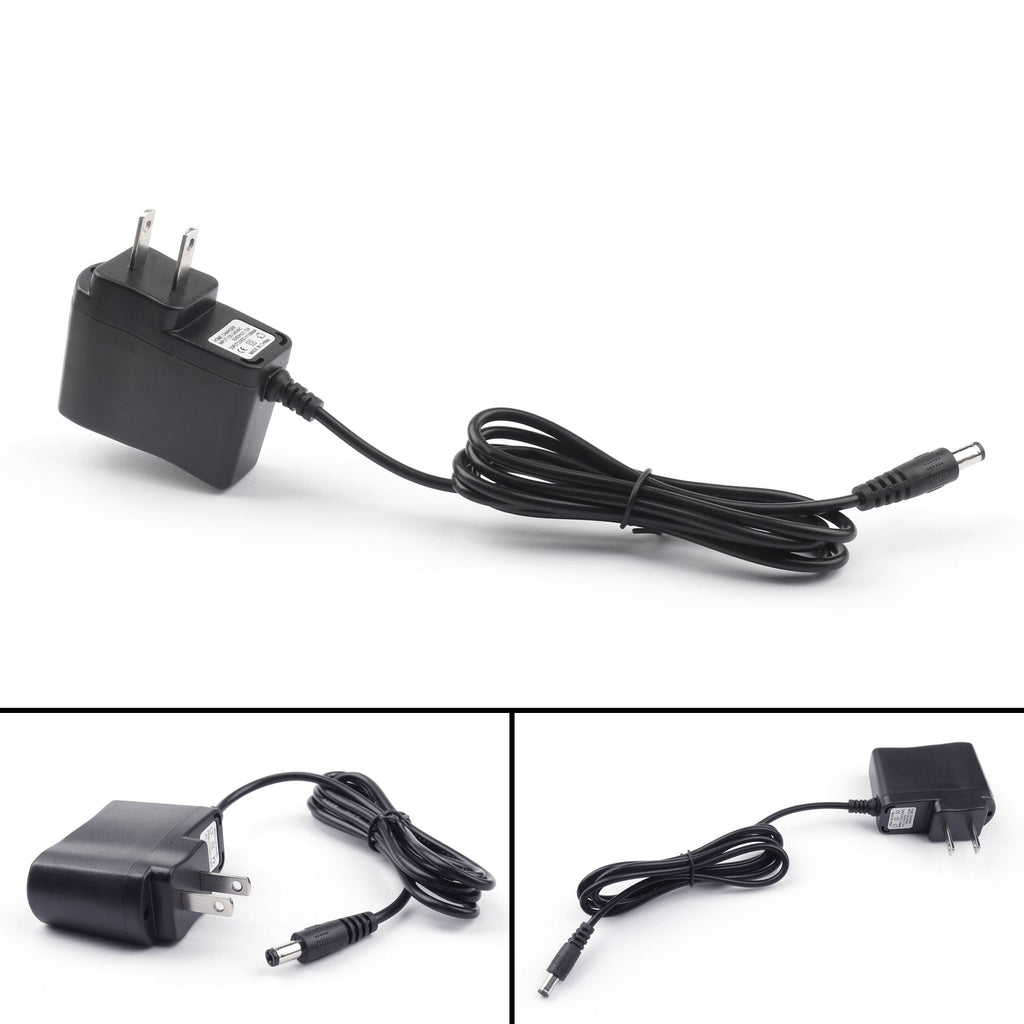

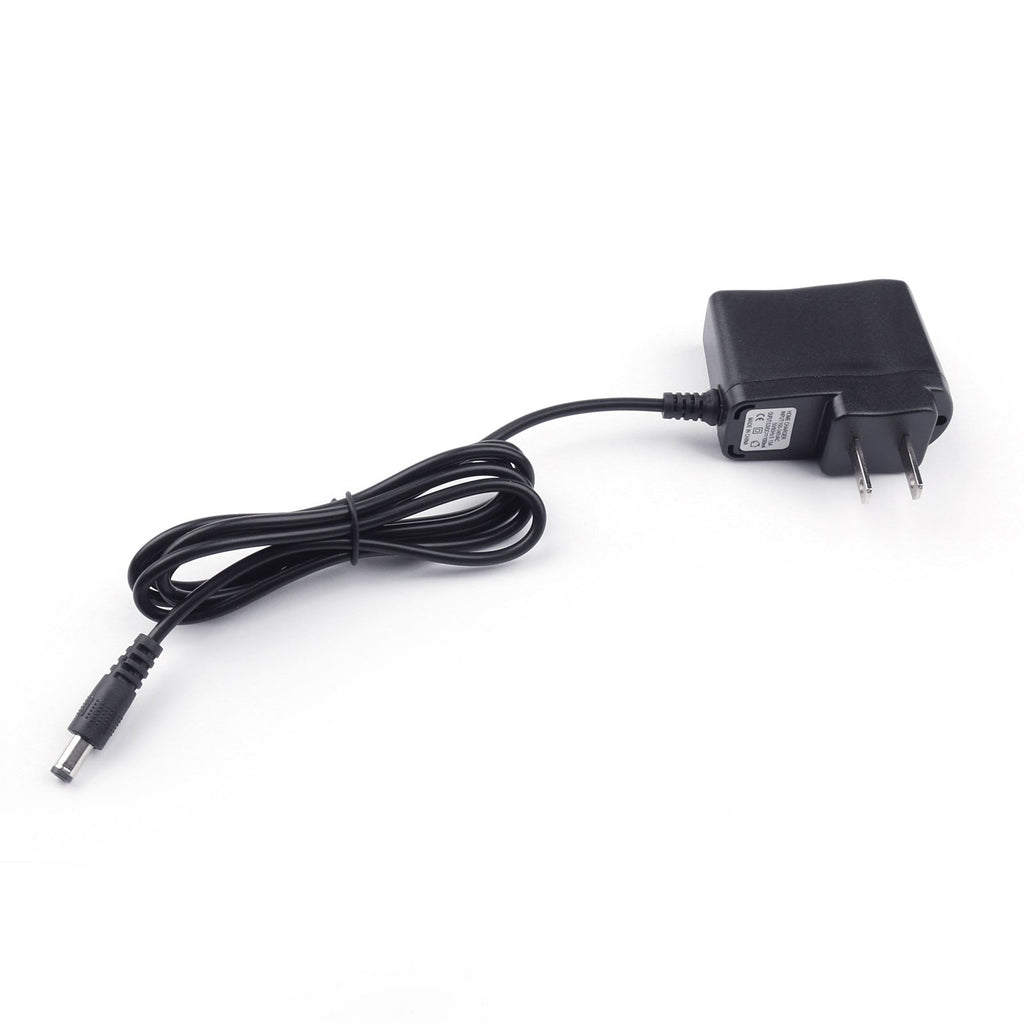

1 × US Power Adapter
1 × Operation Manual
